Directions

Most fields are optional. You may enter fractions, such as '5 3/4'. The exceptions to these rules are given below.
Required Fields (*)
Required fields are marked with * -- they must be filled in.
Number Only Fields (#)
Fields marked with # must contain decimal numbers only. (e.g. '12', '5.25')
Extension Springs--Specification Form

Customer Information
Contact Name : *
Company: *
Phone number: *

Mandatory Specifications   (fill in only those required)
1. OUTSIDE DIAMETER
    a. inches max, or
    b. inches +- inches
2. INSIDE DIAMETER
    a. inches min. or
    b. inches +- inches
3. Maximum extended length (inside ends)
    without set: inches
4. Relative loop position, ° # max.
    separation of loop planes
5. Direction of helix:

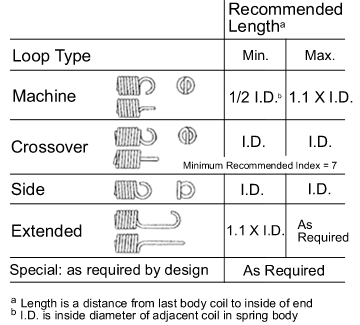

6. Type of end:

Advisory Data   (fill in only those required)
1. LENGTH INSIDE ENDS
    a. inches max., inches
        min., or
    b. inches +/- inches
    c. approximately inches
2. Wire diameter inches
3. Mean coil diameter inches
4. Number of active coils #
5. Body length inches

Special Information   (fill in only those required)
1. Type of material:
2. Finish:
3. End use/application ,(150 Characters or less - 0 used):

4. Other


Quantity: * #
